Tube Traveler

Click here to play video

Tube Traveller Video

Tube Chopping Video

Tube Traveler and Tube Gobbler

Click on a photo thumbnail to view a large version.

Tube Traveler and
Gobbler

After the tube is pulled free of the rolled joint, the Tube Traveler will engage the tube end, flatten and expel the flattened tube from the condenser or heat exchanger.  The Tube Traveler uses gripping and flattening rolls.  Once the nipper and anvil roll set is installed on the Traveler, it becomes a Gobbler and will expel the tube in flattened 6” long pieces, eliminating the need for the Tube Chopper and labor to insert the flattened tube into the self-feeding Chopper.

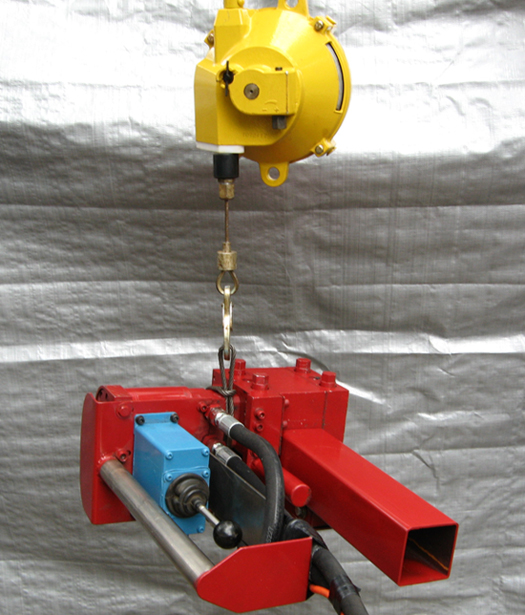

Tube Traveler
Traveler Pump

Specifications

Tube Traveler/Tube
Gobbler

Traveler Pump

Weight 85 lbs
Speed 0-250 feet/min. – variable
Pulling Force 4,000 lbs. at all speeds
